Black Box MARINE RADAR Model FAR-2127 BB

Features

• Supports non-interlaced SXGA (1280 x 1024) monitors with DVI-D input

• Presentation of very high-quality radar image by employing new Digital Video Interface (DVI) techniques

• Advanced signal processing for improved detection in rough seas

• Up to four radar sets can be interconnected in the network without an extra device

• Standard ARPA plotting/tracking of 100 targets acquired automatically or manually

• Displays up to 1,000 AIS-equipped targets

• Easy operation by customizable function keys, trackball/wheel palm modules and rotary knobs

Screenshots

•

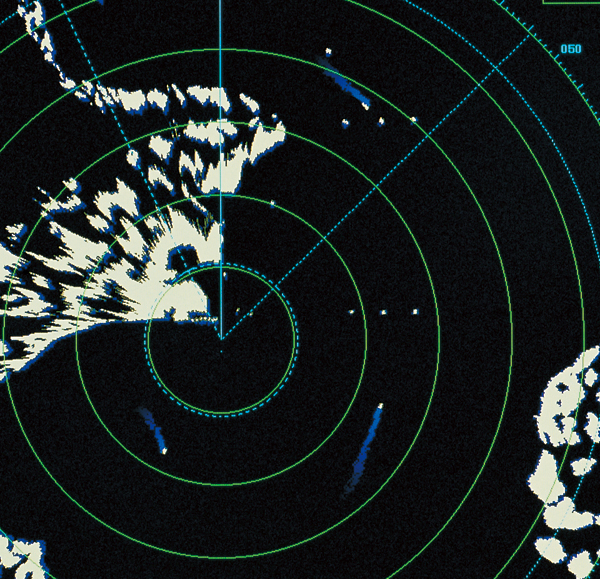

  ECHO TRAIL
•

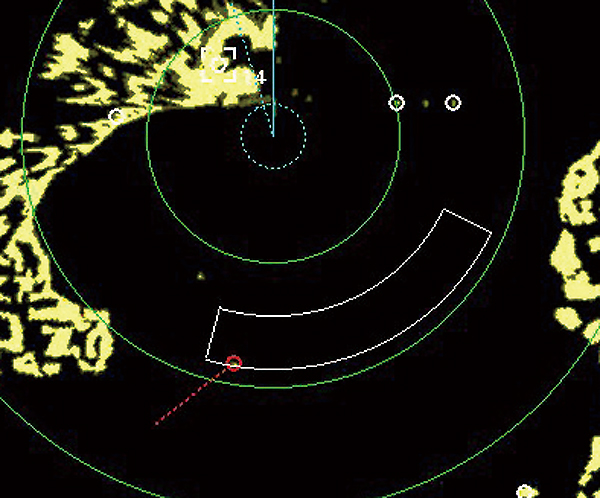

  GUARD ZONE
•

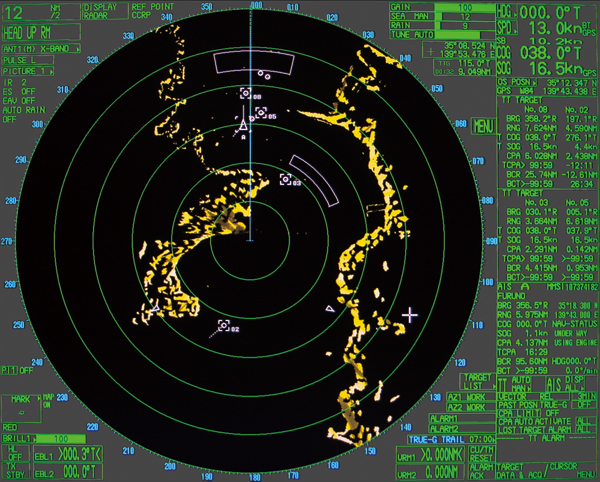

  RADAR DISPLAY
•

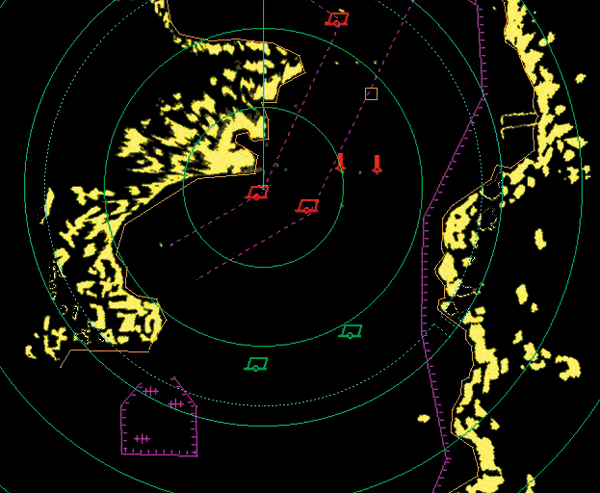

  RADARMAP

Specifications

ANTENNA

Peak Output Power

25 kW

Type

1260 mm Open (4′), 2040 mm Open (6.5′) or 2550 mm Open (8′)

Frequency

9410±30 MHz (X-band)

Beam Width (Horizontal)

1.9˚(4′ Open: XN-12AF), 1.23˚(6.5′ Open: XN-20AF) or 0.95˚(8′ Open: XN-24AF)

Beam Width (Vertical)

20˚

Range Scales

0.125 – 96 nm

Antenna Rotation Speed

24 rpm or 42 rpm

Weight

1260 mm Open （4”）：33 kg
2040 mm Open （6.5”）：39 kg
2550 mm Open （8”）：42 kg

DISPLAY

Display Mode

Head-up, Cursor-gyro, Course-up, North-up, North-up, True motion (sea or ground stabilization)

Other Mode / Functions

TT, AIS

ENVIRONMENT

Temperature

Antenna unit： -25℃ to + 55℃
Others：-15℃ to + 55℃

Waterproofing

Processor unit： IPX0
Antenna unit: IPX6

POWER SUPPLY

Power Supply / Consumption Current

Processor unit:
24 VDC: 8.8 A*1 /9.7 A*2
100-115 VAC: 3.0 A*1 /3.4 A*2
220-230 VAC: 1.8 A*1 /1.9 A*2
*1 : 24 rpm, *2: 42 rpm
